Customising the Plots#
The appearance of nearly every element of a plot can be customised. The below example highlight the main ways to change the appearance of the plots; refer to the API documentation for the full range of options.

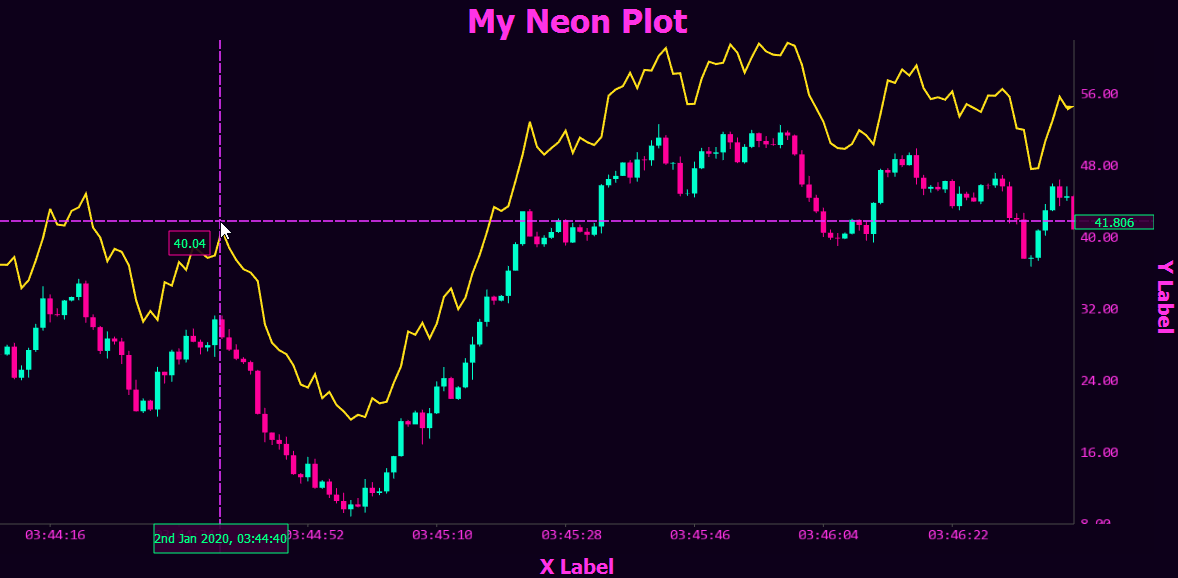

To create a bold neon-style plot:
Warning
Axis and grid line widths may not change depending on your GPU.
from rallyplot import Plotter
from rallyplot.plotter import get_toy_candlestick_data
open_high_low_close_df, volume, dates = get_toy_candlestick_data(N=100_000)
# The Plotter() class initialisation exposes a number of arguments that control
# the plot appearance. Axis font and margin widths will apply to all subplots.
plotter = Plotter(
anti_aliasing_samples=8,
width=1200,
height=600,
axis_tick_label_font="consola",
axis_tick_label_font_size=15,
width_margin_size=80, # spacing between the axis and window
height_margin_size=30,
axis_right=True # set the axis on the left
)
# Set the background color for the subplot
plotter.set_background_color((0.05, 0.0, 0.1, 1.0))
y = open_high_low_close_df["open"]
# We can change the color of plots with `color`
# arguments that the plotting functions expose
plotter.candlestick_from_df(
open_high_low_close_df,
dates,
up_color=(0.0, 1.0, 0.8, 1.0),
down_color=(1.0, 0.0, 0.6, 0.8),
)
plotter.line(
y + 10,
color=(1.0, 0.88, 0.1, 0.7),
width=0.75,
)
# The appearance of the title and x / y labels can be customized when they are set.
plotter.set_title("My Neon Plot", font="consola", weight="bold", font_size=25, color=(1.0, 0.2, 0.9))
plotter.set_x_label(
"X Label", font="consola", weight="bold", font_size=15, color=(1.0, 0.2, 0.9)
)
plotter.set_y_label(
"Y Label", font="consola", weight="bold", font_size=15, color=(1.0, 0.2, 0.9)
)
# We can adjust the axis label color and axis gridlines, as well as many other
# options, with the axis setting functions
plotter.set_y_axis_settings(
font_color=(1.0, 0.2, 0.9),
show_gridline=False
)
plotter.set_x_axis_settings(
font_color=(1.0, 0.2, 0.9),
show_gridline=False
)
plotter.set_crosshair_settings(
linewidth=2,
line_color=(0.9, 0.2, 1.0, 0.8),
font="consola",
font_size=9,
font_color=(0.0, 1.0, 0.5, 1.0),
background_color=(0.2, 0.0, 0.2, 0.9)
)
# We can also adjust the appearance of drawn lines
# (hold M click left-clicking on the plot) and the
# pop-up box that displays the plot values at the cursor tip
plotter.set_draw_line_settings(linewidth=2)
plotter.set_hover_value_settings(
display_mode="always_show", # press CTRL+S to switch display between plots
font="consola",
font_size=9,
font_color=(0.0, 1.0, 0.5, 1.0),
background_color=(0.1, 0.0, 0.1, 0.9),
border_color=(1.0, 0.0, 0.6, 1.0)
)
plotter.start()
#include <Plotter.h>
#include <ToyData.h>
int main(int argc, char* argv[])
{
CandleData candleData = getToyCandlestickData(100000);
std::vector<float> y_with_offset(candleData.open.size());
for (int i = 0; i < y_with_offset.size(); i++)
{
y_with_offset[i] = candleData.open[i] + 10.0f;
}
// The Plotter() class initialisation exposes a number of arguments that control
// the plot appearance. Axis font and margin widths will apply to all subplots.
PlotterArgs plotterArgs{};
plotterArgs.antiAliasingSamples = 8;
plotterArgs.width = 1200;
plotterArgs.height = 600;
plotterArgs.axisTickLabelFont = Font::consola;
plotterArgs.axisTickLabelFontSize = 15;
plotterArgs.widthMarginSize = 80; // spacing between the axis and window
plotterArgs.heightMarginSize = 30;
plotterArgs.axisRight = false; // set the axis on the left
Plotter plotter = Plotter(
plotterArgs
);
// Set the background color for the subplot
plotter.setBackgroundColor({0.05, 0.0, 0.1, 1.0});
// We can change the color of plots with `color`
// arguments that the plotting functions expose
CandlestickSettings candlestickSettings;
candlestickSettings.upColor = {0.0, 1.0, 0.8, 1.0};
candlestickSettings.downColor = {1.0, 0.0, 0.6, 0.8};
plotter.candlestick(
candleData.open,
candleData.high,
candleData.low,
candleData.close,
candleData.dates,
candlestickSettings
);
LineSettings lineSettings{};
lineSettings.color = {1.0, 0.88, 0.1, 0.7};
lineSettings.width = 0.75f;
plotter.line(
y_with_offset,
lineSettings
);
// The appearance of the title and x / y labels can be customized when they are set.
// Set the title
TitleLabelSettings titleSettings{};
titleSettings.font = Font::consola;
titleSettings.weight = "bold";
titleSettings.fontSize = 25;
titleSettings.color = {1.0, 0.2, 0.9};
plotter.setTitle("My Neon Plot", titleSettings);
// Set the axis labels
AxisLabelSettings axisLabelSettings{};
axisLabelSettings.font = Font::consola;
axisLabelSettings.weight = "bold";
axisLabelSettings.fontSize = 15;
axisLabelSettings.color = {1.0, 0.2, 0.9};
plotter.setXLabel("X Label", axisLabelSettings);
plotter.setYLabel("Y Label", axisLabelSettings);
// We can adjust the axis label color and axis gridlines, as well as many other
// options, with the axis setting functions
XAxisSettings xAxisSettings{};
xAxisSettings.fontColor = {1.0, 0.2, 0.9};
xAxisSettings.showGridline = false;
YAxisSettings yAxisSettings;
yAxisSettings.fontColor = {1.0, 0.2, 0.9};
yAxisSettings.showGridline = false;
plotter.setXAxisSettings(xAxisSettings);
plotter.setYAxisSettings(yAxisSettings);
// We can also adjust the appearance of drawn lines
// (hold M click left-clicking on the plot) and the
// pop-up box that displays the plot values at the cursor tip
CrosshairSettings crosshairSetting;
crosshairSetting.linewidth = 2;
crosshairSetting.lineColor = {0.9, 0.2, 1.0, 0.8};
crosshairSetting.font = Font::consola;
crosshairSetting.fontSize = 9;
crosshairSetting.fontColor = {0.0, 1.0, 0.5, 1.0};
crosshairSetting.backgroundColor = {0.2, 0.0, 0.2, 0.9};
plotter.setCrosshairSettings(crosshairSetting);
HoverValueSettings hoverValueSettings;
hoverValueSettings.displayMode = HoverValueDisplayMode::alwaysShow; // press CTRL+S to switch display between plots
hoverValueSettings.font = Font::consola;
hoverValueSettings.fontSize = 9;
hoverValueSettings.fontColor = {0.0, 1.0, 0.5, 1.0};
hoverValueSettings.backgroundColor = {0.1, 0.0, 0.1, 0.9};
hoverValueSettings.borderColor = {1.0, 0.0, 0.6, 1.0};
plotter.setHoverValueSettings(hoverValueSettings);
plotter.start();
}
